Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Anlian
  • Model Number: CD
  • Usage: Construction Hoist
  • Power Source: Electric
  • Sling Type: Wire Rope
  • Maximum Lifting Weight: 3T
  • Maximum Lifting Height: 24m
  • Lift Speed: 8 8/0.8 m/min
  • Certification: CCC, ISO9001
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Wire rope: D-6X37+1
  • Rotation speed: 1380 r/min
  • Color: as your request
  • Type of Travel motor: ZDY112-4
  • Travel speed: 20/30 m/min
  • Type of Hoisting motor: ZD141-4 ZDS10.4/4.5
  • Working Duty: Mid M3
  • Working temperature: -20~+40 degree
  • I-beam track type: 20a-32c
  • Power supply: 220V-440V,3phase,50/60HZ

Packaging & Delivery

Packaging Details packaged by woven plastic cloth,electrical packed and other parts packed by high quality plywood crate or according customer's needs
Delivery Time Shipped in 3 days after payment

Wire rope lifting hoist 3T Pulling Electric hoist for crane

Product Description

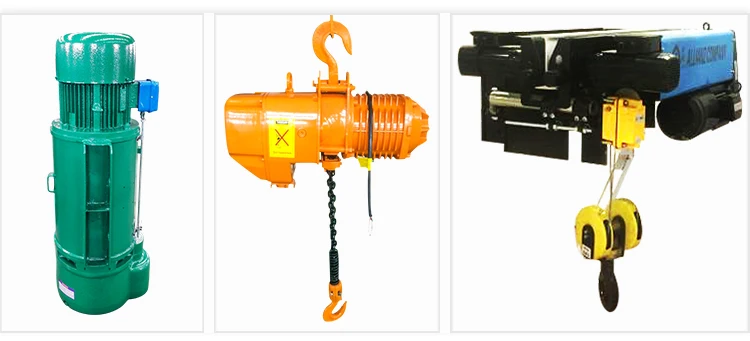

Product Pictures of 3T Small Electric hoist for crane







CD1/MD1: wire rope electric hoist is a kind of light duty lifting equipment with advantages of tight structure, light dead weight, small volume, wide common use and convenient operation etc.
CD1 MD1: wire rope electric hoists can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and mining enterprises, railway, wharfs and warehouses etc.

























































































































Brief Introduction

CD1/MD1: wire rope electric hoist is a kind of light duty lifting equipment with advantages of tight structure, light dead weight,

small volume, wide common use and convenient operation etc.
CD1 MD1: wire rope electric hoists can be widely used to hoist heavy objects, or installed on the straight or curve I-section

steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes.

All the above has made the electric hoists common in industrial and mining enterprises, railway, wharfs and warehouses etc.





Technical Data

ModelCD1 MD1
CapacityTons0.250.512351016
Hoisting heightM3,6,96,9,126,9,12,18,24,309,12,18,24,30
Hoisting speedM/MIN8(0.8/8)8(0.8/8)8(0.8/8)7(0.7/7)3.5 (0.35/3.5)
Travel speedM/MIN2020/3020/3020/3020/3020/3020/3018
Wirerope Dia.(mm)3.64.87.41113151517.5
Spec.6x396x37+FC6x37+FC6x37+FC6x37+FC
Hoisting motorTypeZD112-4ZD121-4ZD122-4ZD131-4ZD132-4ZD141-4ZD151-4ZD151-4
ZDS1
0.2/0.8
ZDS1
0.2/1.5
ZDS1
0.4/3.0
ZDS1 0.4/4.5ZDS1
0.8/7.5
ZDS1
1.5/13
ZDS1 1.5/13
Power (KW)0.40.8
(0.2/0.8)
1.5
(0.2/1.5)
3.0
(0.4/3.0)
4.5
(0.4/4.5)
7.5
(0.8/7.5)
13(1.5/13)13(1.5/13)
speed (r/min)13801380138013801380140014001400
Current (A)1.252.2
(0.72/2.4)
4.3(0.72/4.3)7.6(1.25/7.6)11
(2.4/11)
18
(2.4/18)
30(5.2/30)30(5.2/30)
Travel motorTypeZDY110-4ZDY111-4ZDY111-4ZDY112-4ZDY112-4ZDY121-4ZDY121-4ZDY121-4
Power (KW)0.060.20.20.40.40.80.8x20.8x2
speed (r/min)14001380138013801380138013801380
Current (A)0.30.720.721.251.252.42.42.4
Power AC 380V,50HZ,3P (By your demand)



Product Components of 3T Small Electric hoist for crane













Accessories of  3T Small Electric hoist for crane









Packaging & Shipping





Delivery of High Quality Electric Hoist

Company Information

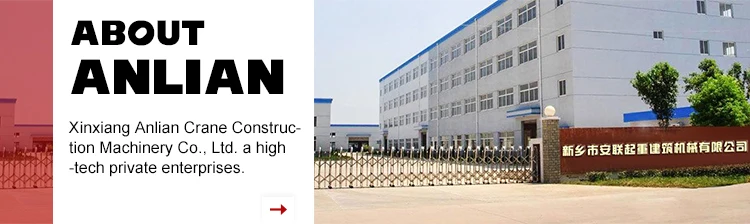

An overview of our factory
Xinxiang Anlian Crane Construction Machinery Co., Ltd., the main business:
electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories, Which widely used in various fields of materials handling, such as Machinery Manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on. Founded in 1993, currently has a registered capital of 10 million yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24,000 square meters, with all kinds of production equipment 90 (sets).





Certification





FAQ



Ordering Information
About Product:
Please inform us the following data for the purpose of servicing you better!
1. Lifting capacity.
2. Lifting height.(hook center to ground)
3. Span(rail center to rail center)
4. Power supply: Voltage.
5. Working condition: material of this product and working temprature
6. Would be better if you have drawings of your plant.

About Delivery: 30days after receiving your deposit and after the order confirmed.
About Payment: L/C, T/T



Our Services
Hot-selling in these countries and regions
Our cranes are hot-selling in:

United Kingdom, India, Negeria, Pakistan, Egypt, Bangladesh, Philippines, Australia, Malaysia, Singapore, Malta, Turkmenistan, Saudi Arabia, Peru, Ethiopia, Malta, Albania, South Africa and so on, and get well feedback and many new orders again from them.

If you want to have any details of these projects, please TELL US!





Service we can provide

1. Payment terms is flexible.
2. Design the crane according to your technical request.
3. Delivery on time.
4. Our engineer can arriving to the installation site to help fixing the crane for you.
5. Diversity products.
6. Warranty: 12 months.



Warranty:
1.1 (one)year guarantee for main body.
2. we provide free maintenances for spare parts, but the new components replaced should be paid.
3. we arrange engineer to supervise installation, make the load test, do commissioning, train of the buyer's workers.
4. Technique support: Exclusive engineer support at any time .



  Any inquiry, pls feel free to contact us!
