Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Anlian
  • Model Number: CD1/MD1
  • Usage: construction and mining
  • Power Source: Electric
  • Sling Type: Wire Rope, wire rope
  • Maximum Lifting Weight: 32t
  • Maximum Lifting Height: 30m
  • Lift Speed: Depends
  • Certification: FEM, ISO,CE
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item: 1-10 ton wire rope electric hoist Crane Lifting Electric Hoist
  • Hoisting height: 30m
  • Stop limiter device: included
  • Application: Lifting heavy duty for construction
  • Working temperature: -25℃-+40℃
  • Power supply: 3-Phase AC 380V 50Hz or According to your order
  • Wire rope hoist: Low headroom,explosion-proof,European
  • Working duty: M3-M4
  • Hoist lifting capacity: 0.25-32Ton

Packaging & Delivery

Packaging Details: Electric parts are packed by strong plywood crate,others packaged in polythene woven cloth
Delivery Detail: Shipped in 5 days after payment
Product Description







CD&MD model wire rope electric hoist is a kind of light-duty lifting equipment with advantages of tight structure, light weight, small volume, wide common use and convenient operation etc.If reducers with hard gear surface are applied, it will have long life and high mechanical efficiency. Conic rotor brake motors are equipped which has safety limiter in both up and down directions.


    CD model electric hoist has only one normal speed ,which can satisfy normal application. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.


    CD&MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.


    The standard capacity of this type electric hoist: 0.5T, 1T, 2T, 3T, 5T, 10T, 16T, 20T.


    Lifting height: 6m, 9m, 12m, 18m, 24m, 30m, and Max. 100m.



Wire rope electric hoist technical parameters:



Precaution:
1.Before you use the hoist,please do remember to check the hooks and bodies,the brake device and the lubrication of transmitting parts,and load chains in good condition as well as the die motions.

2.Don't use two or more hoists to lift one weight
3.Overload is strictly forbidden.

4.No hook tips loading.No direct binding of a load with one chain.
5.No over lifting,no over lowering.
6.Keep anybody out of the place loading.







Advantages :

Wire Rope Motor Hoist

  • Ideal for refurbishment or modernization
  • High efficiency due to 20 % longer service life
  • Optimum utilization of space thanks to compact design
  • High availability thanks to a low maintenance requirement
  • Fast handling thanks to high hoist speeds
  • Good value for money thanks to comprehensive series features
  • Protective rope guide
  • Overload protection

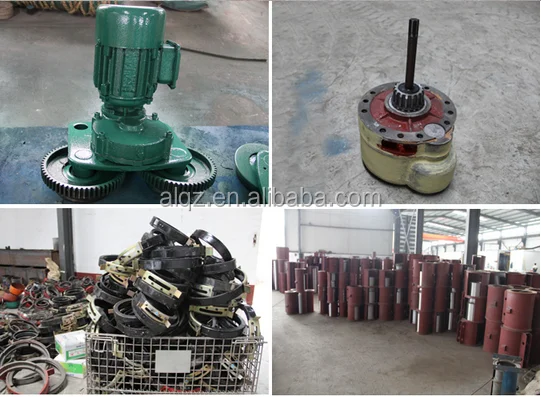

Component of wire rope hoist:



Customer visit



Packaging & Shipping











Company Information

 Xinxiang Anlian Crane Construction Machinery Co., Ltd.

Main business:

electric hoist, hoist, crane motors, conical motors, vibration motors, concrete  vibrators and hoist accessories, which widely used in various fields of materials handling, such as Machinery Manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on.

Long History:

Founded in 1993, currently has a registered capital of 10 million yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24,000 square meters, with all kinds of production equipment 90 (sets).

FAQ



 1. Can you make customized products?

    Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our

engineers can make suitable design for you.



  2. Can you supply the quality certification?

    Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,

or you can let some third-partied to do the inspection for you.



  3. Can I have a visit to your factory?

     You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
